Spesifikasi Teknis

Pre-stressed Sheet Concrete Pile

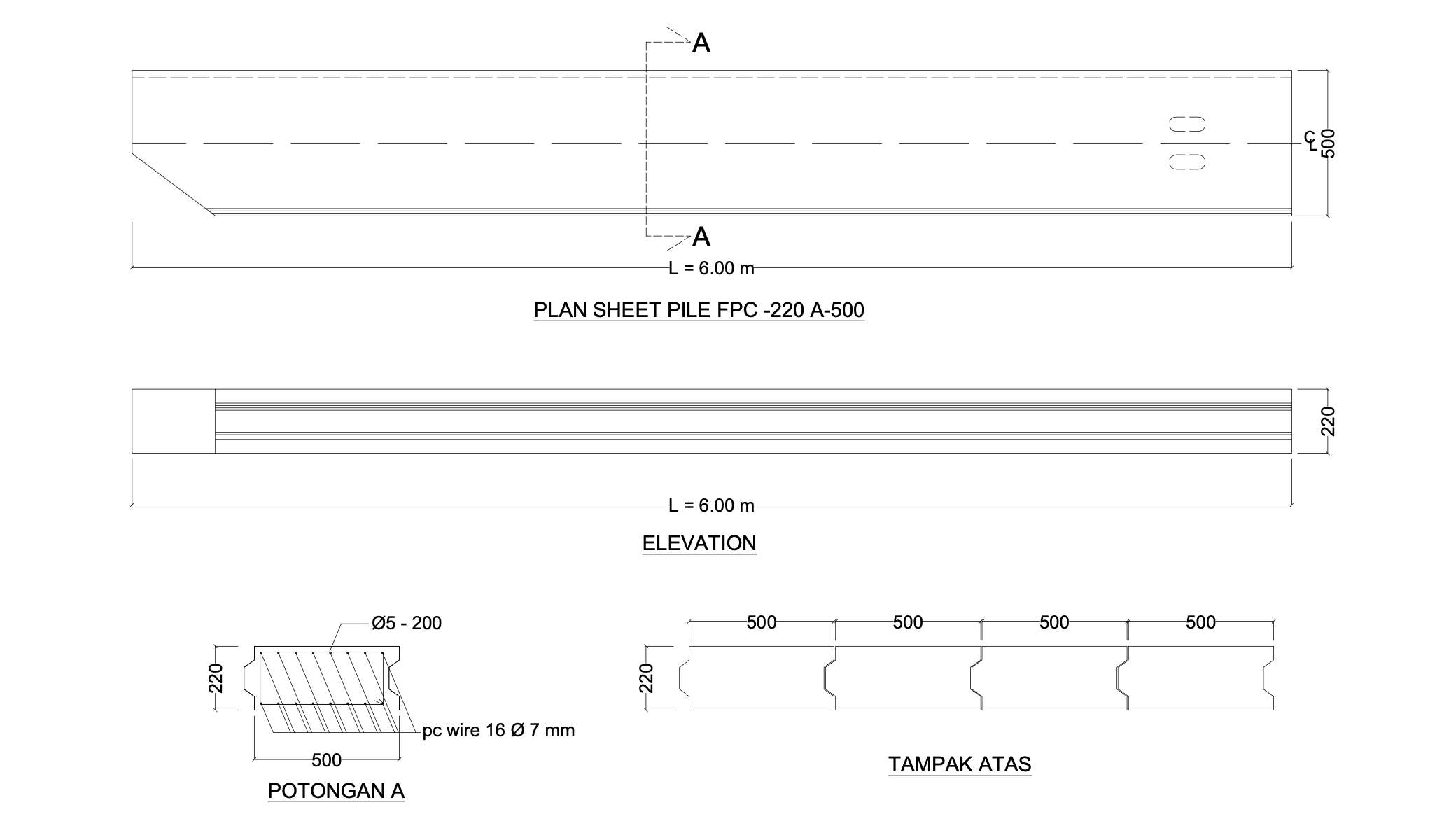

22x50cm Flat Sheet Pile

Pre-stressed 22x50cm dimension Flat Concrete Sheet Pile

SPESIFIKASI BAHAN

• Mutu Beton

  : K-500 (fc' = 40 Mpa)
• Mutu Baja Prategang

  : PC WIRE JIS G 3536
• Mutu Baja Non Prategang

  : BJTP 24, fy = 2.400 kg/cm²

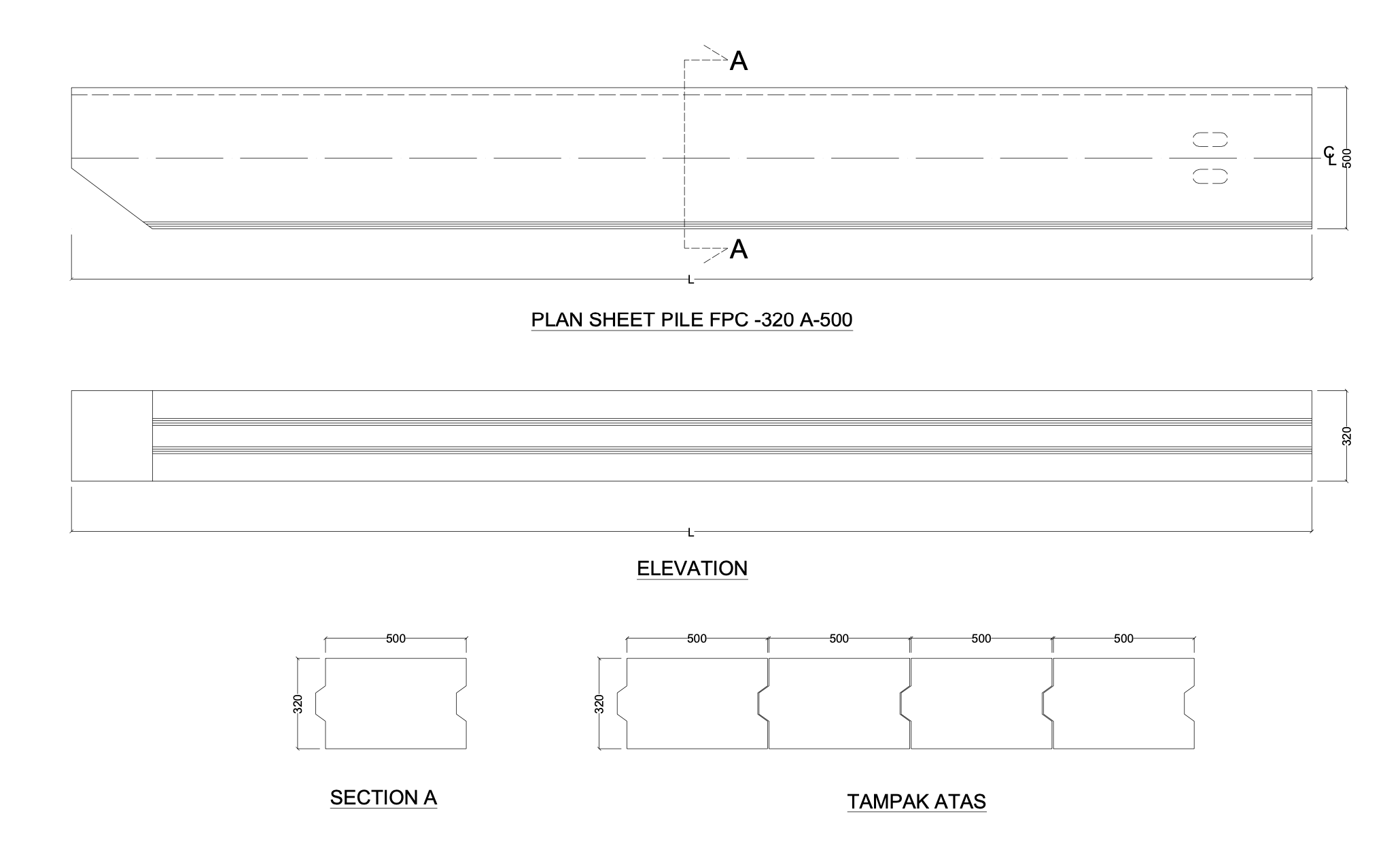

32x50cm Flat Sheet Pile

Pre-stressed 32x50cm dimension Flat Concrete Sheet Pile

SPESIFIKASI BAHAN

• Mutu Beton

  : K-500 (fc' = 40 Mpa)
• Mutu Baja Prategang

  : PC WIRE JIS G 3536
• Mutu Baja Non Prategang

  : BJTP 24, fy = 2.400 kg/cm²

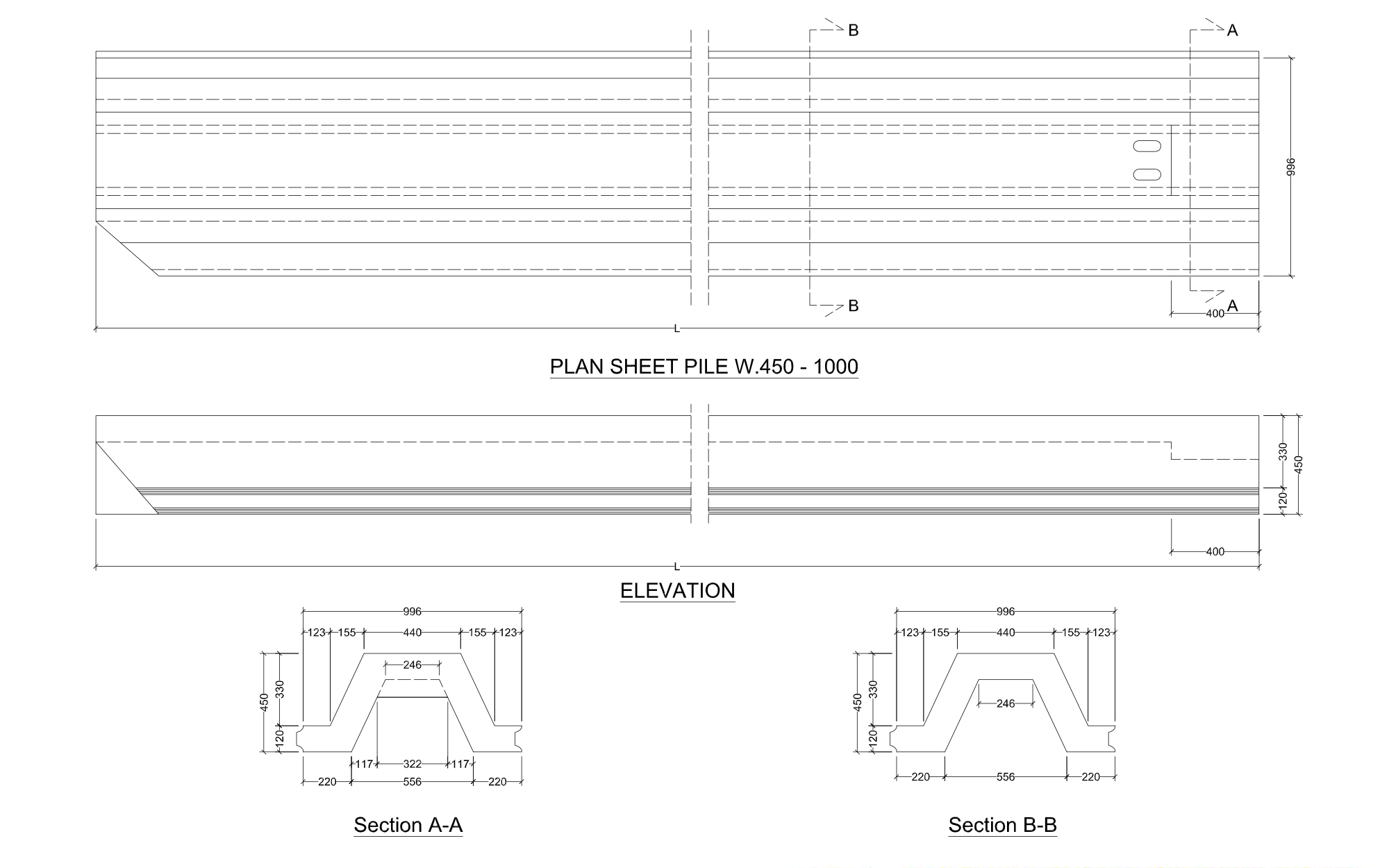

45x100cm Corrugated Sheet Pile

Pre-stressed 45x100cm dimension Corrugated Concrete Sheet Pile

Sheet Pile W-450 A 1000

• Height

  : 450 mm
• Width

  : 996 mm
• Thickness

  : 120 mm
• Cracking Moment

  : 26.9 tf.m
• Weight

  : 454 kg/m
